發酵槽 Winpact Benchtop Controller
https://ufileweb.hiwinner.tw/HiperShop/rwd1661/Store/bImages/b_b_FS-05_2.png
- 發酵槽（Fermenter）：
- 主要用於微生物（如細菌、酵母）或某些真核細胞（如哺乳動物細胞）的培養，以生產代謝產物（如酒精、抗生素、酵素）。
- 通常強調無菌環境和參數控制（溫度、pH、溶氧、攪拌速度等）。
- 常見於食品工業（啤酒、酸奶）、製藥工業（抗生素）等。
- 生物反應器（Bioreactor）：
- 廣義上包含發酵槽，但還包括用於動植物細胞培養、組織工程、廢水處理等更廣泛的生物反應過程。
- 設計上可能更複雜，例如可提供光照（光生物反應器用於藻類培養）、灌流系統、或特殊材料（如生物相容性材料用於細胞培養）。
- 應用領域更廣：包括生物燃料、細胞治療、組織工程、環境生物技術等。
兩者核心差異：
- 發酵槽通常指傳統微生物發酵的容器；生物反應器是更廣泛的概念，包括各種生物催化反應的容器。
- 生物反應器可能包含更精密的控制系統以適應敏感細胞（如哺乳動物細胞）。
以下是發酵槽（Fermenter）與生物反應器（Bioreactor）的專業簡介與對比，以清晰結構呈現：
1. 核心定義
| 設備類型 | 發酵槽 (Fermenter) | 生物反應器 (Bioreactor) |
|---|---|---|
| 主要用途 | 傳統微生物發酵（如酵母、細菌） | 廣義生物過程（細胞培養、酶反應等） |
| 適用生物 | 微生物為主 | 微生物、動植物細胞、組織工程 |
| 核心目標 | 生產代謝產物（酒精、抗生素等） | 精準控制複雜生物反應（如蛋白質合成） |
2. 設計與控制參數
| 特性 | 發酵槽 | 生物反應器 |
|---|---|---|
| 控制精度 | 基礎參數（溫度、pH、攪拌） | 高精度多參數（溶氧、CO₂、營養濃度） |
| 材質 | 不銹鋼為主 | 玻璃/生物相容性材料（避免細胞沾黏） |
| 攪拌系統 | 機械攪拌（Impeller） | 可選氣升式（Airlift）或波浪式 |
| 無菌要求 | 中等 | 極高（避免細胞污染） |
3. 應用領域對比
| 領域 | 發酵槽典型應用 | 生物反應器典型應用 |
|---|---|---|
| 食品工業 | 啤酒、酸奶、醬油生產 | 高價值添加劑（維生素、香料） |
| 製藥業 | 抗生素（如青黴素） | 單株抗體、疫苗、基因治療產品 |
| 環保能源 | 廢水處理、沼氣生成 | 微藻生質燃料、生物降解材料 |
| 前沿研究 | 較少 | 組織工程、人工器官培養 |
4. 技術發展趨勢
- 發酵槽：
趨向大型化（工業級萬升容量）+ 自動化控制，提升傳統產業效率。 - 生物反應器：
→ 微型化（微流控晶片用於藥物篩選）
→ 智能化（AI即時調控細胞代謝路徑）
→ 連續式生產（取代批次操作，降低成本）
Winpact系列的發酵系統：

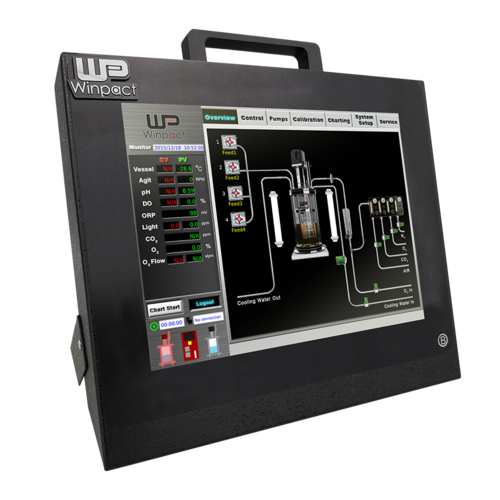

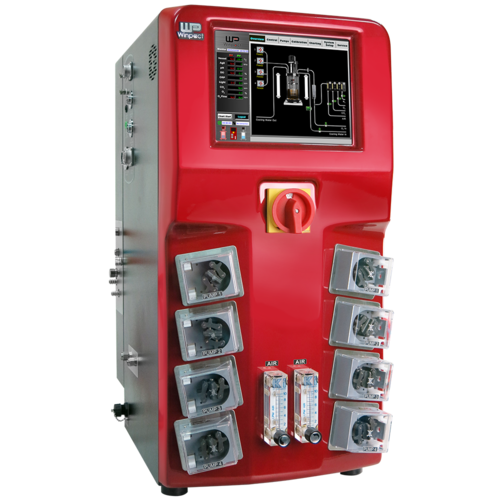

- FS-05：可連接兩個容器

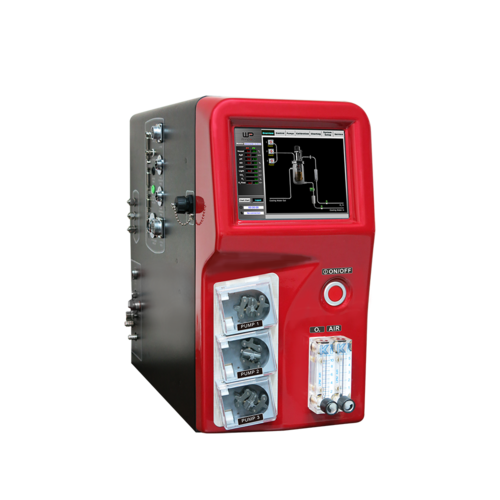

- FS-06：最節省空間和價格

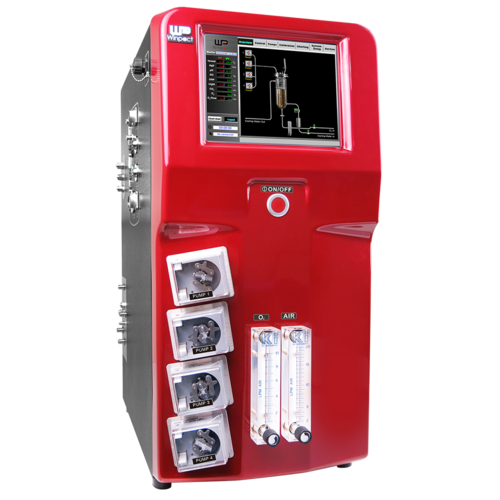

- FS-07：標準系統，滿足大部分需求
三大型號技術對比
| 型號 | FS-05 | FS-06 | FS-07 |
|---|---|---|---|
| 核心設計 | 雙容器平行系統 | 極致緊湊結構 | 全功能標準平台 |
| 最大容量 | 2×5L (典型配置) | 單罐3-5L | 單罐10-15L |
| 空間效率 | 需雙倍操作面積 | ✅ 佔地減少40% vs傳統系統 | 中等佔地需求 |
| 成本定位 | 中高價（雙系統溢價） | ✅ 入門價位 | 性價比最優 |
| 擴展能力 | ✅ 可外接感測器陣列 | 基礎I/O接口 | ✅ 支援自動取樣模組 |
| 適用場景 | 對照組實驗／參數優化 | 空間受限實驗室 | 製程開發／中試生產 |
關鍵技術亮點
- 智能控制核心
- 多通道PID調節（溫度精度±0.1°C）
- 溶氧(DO)/pH即時反饋控制
- 抗染菌設計：全密閉蒸汽滅菌接口
- 數據整合能力
- OPC-UA協議支援第三方SCADA系統
- 實驗數據導出格式：CSV/JSON/Biobr
應用場景建議
| 需求場景 | 首選型號 | 附加方案 |
|---|---|---|
| 大學教學實驗 | FS-06 | 簡化版控制軟件 |
| 製藥菌種篩選 | FS-05 | 高解析度代謝監測模組 |
| 食品發酵工藝放大 | FS-07 | 多級參數階躍控制包 |
| 合成生物學路徑驗證 | FS-05 | 微流控晶片整合接口 |
Winpact Vessel Selection Guide
| Vessel | Double Jacketed Dish Bottom Vessel | Single Wall Dish Bottom Vessel | Air Lifter Vessel | Single Wall Dish Bottom Vessel with Heating Blanket | Single Wall Plain Bottom Vessel with Heating Base Unit | Solid State |
|---|---|---|---|---|---|---|
| Serie FS-V-A | Serie FS-V-B | Serie FS-V-C | Serie FS-V-B | Serie FS-V-D | FS-V-SA05P | |
 |  |  |  |  |  |
| Controller | Duo Heating Control ( FS-05, FS-06, FS-07 ) | |||||
|---|---|---|---|---|---|---|
| Vessel | Double Jacketed (FS-V-A series) | Single Wall (FS-V-B series) | Air Lifter (FS-V-C series) | Single Wall with Heating Blanket (FS-V-B series) | Single Wall with Heating Base Unit (FS-V-D series) | Solid State (FS-V-SA05P) |
| Agitation Motor | Brushless motor | Brushless motor | N/A | Brushless motor | Brushless motor | Brushless motor |
| Impeller | Rushton-type; Pitched-blade | Rushton-type; Pitched-blade | N/A | Rushton-type; Pitched-blade | Rushton-type; Pitched-blade | Broken type; Anchor type; Spiral type |
| Temp Range | 5 °C above coolant to 60°C | 5 °C above coolant to 60°C | Double Jacketed: 5°C above coolant to 60°C Single Wall: without temp control | 5°C above coolant to 60°C | 5°C above coolant to 90°C | 5°C above coolant to 60°C |
| Vessel Size | 500ml – 10L | 1 – 10L | 5L only, single wall or double jacketed | 1 – 20L | 3 – 10L | 5L only |
| Speed Range | Rushton type 30-1800 rpm(0.5, 1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L) Pitched blade 30-300 rpm | Rushton type 30-1800 rpm(1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L) Pitched blade 30-300 rpm | N/A | Rushton type 30-1800 rpm(1L); 30-1200 rpm(3, 5L); 30-1000 rpm(10L); 30-700 rpm(15, 20L) Pitched blade 30-300 rpm | Rushton type 30-1200 rpm(3, 5L); 30-1000 rpm(10L) Pitched blade 30-300 rpm | 1-60rpm * The minimum speed varies from 1-5 rpm depending on actual medium density. |
| Heating | Built-in heat exchanger | Heating blanket | Heating base unit | Built-in heat exchanger | ||
| Cooling | External chiller, automatic cooling water valve | |||||
| Aeration | L-shape or ring sparger | L-shape or ring sparger | Micro-sparger | L-shape or ring sparger | L-shape or ring sparger | Center-located sparger |
| Grounding Port | No need | No need | Yes | No need | No need | No need |
| Application | Excellent for temperature sensitive and shear-force sensitive cells such as mammalian and insect cell culture | Great for aerobic or anaerobic microbial culture; suitable for plant cell and photosynthesis cell culture | Excellent for shear-sensitive cells; ideal for plant cells, fungal cells, algae cell and photosynthesis cell culture | Ideal for rapid temperature change aerobic and anaerobic microbial (bacteria and yeast) fermentation | Excellent for aerobic and anaerobic microbial (bacteria, yeast) culture, such as E.coli | Special for the culture of microbial in substrates with low water levels condition , generally suitable for fungi, such as filamentous fungi |
*For FS-V-A, FS-V-B and FS-V-D series, the standard impeller is Rushton type; Pitched blade is available for cell culture upon request.
| Vessel | Double Jacketed (FS-V-A series) | Single Wall (FS-V-B series) | Air Lifter (FS-V-C series) | Single Wall With Heating Blanket (FS-V-B series) | Single Wall With Heating Base Unit (FS-V-D series) | Solid State (FS-V-SA05P) |
|---|---|---|---|---|---|---|
| Mammalian cell culture | ● ● | ● ○ | ○ ○ | ● ○ | ○ ○ | ○ ○ |
| Aerobic microorganism culture (Note 1) | ● ● | ● ● | ● ● | ● ● | ● ● | ○ ○ |
| Micro-aerobic microorganism culture (Note 2) | ● ● | ● ● | ○ ○ | ● ● | ● ● | ○ ○ |
| Anaerobic microorganism culture (Note 3) | ● ● | ● ● | ○ ○ | ● ● | ● ● | ○ ○ |
| Fragile cell culture (Note 4) | ● ● | ● ○ | ● ● | ● ○ | ○ ○ | ○ ○ |
| Photosynthesis cell culture (Note 5) | ● ○ | ● ● | ● ● | ○ ○ | ● ○ | ○ ○ |
| Plant cell culture | ● ○ | ● ○ | ● ● | ○ ○ | ○ ○ | ○ ○ |
| Insect cell culture | ● ● | ● ○ | ○ ○ | ● ○ | ○ ○ | ○ ○ |
| Solid State (FS-V-SA05P) | ○ ○ | ○ ○ | ○ ○ | ○ ○ | ○ ○ | ● ● |
● ● Excellent ● ○ Good ○ ○ Not Recommended
Note:
- 1. Some bacteria; yeast; fungi
- 2. Facultative culture (For example, some Lactobacillus; ethanol production)
- 3. Same as Note 2
- 4. This vessel is excellent for fragile cells that are easily sheared by any type of mechanical impeller
- 5. Plant; algae; cyanobacteria (blue-green algae)
Vessel Specification
| Vessel type | Double Jacketed Dish Bottom Vessel (FS-V-A series) | ||||
|---|---|---|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 2:1) | ||||
| Working volume ** | 500ml | 1L | 3L | 5L | 10L |
| Total volume Δ | 1L | 1.5L | 3.8L | 6.8L | 12.5L |
| Vessel type | Single Wall Dish Bottom Vessel (FS-V-B series) | |||
|---|---|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 2:1) | |||
| Working volume ** | 1L | 3L | 5L | 10L |
| Total volume Δ | 1.5L | 3.8L | 6.8L | 12.5L |
| Vessel type | Air Lifter Vessel (FS-V-C series)* | |
|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 3:1) | |
| Working volume ** | 5L single wall | 5L double jacketed |
| Total volume Δ | 7L | |
| Vessel type | Single Wall Dish Bottom Vessel With Heating Blanket (FS-V-B series) | |||||
|---|---|---|---|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 2:1) | |||||
| Working volume ** | 1L | 3L | 5L | 10L | 15L | 20L |
| Total volume Δ | 1.5L | 3.8L | 6.8L | 12.5L | 18.7L | 23.7L |
| Vessel type | Single Wall Plain Bottom Vessel With Heating Base Unit (FS-V-D series) | ||
|---|---|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings (H:D ratio: 2:1) | ||
| Working volume ** | 3L | 5L | 10L |
| Total volume Δ | 3.7L | 6.7L | 13.1L |
| Vessel type | Solid State (FS-V-SA05P) |
|---|---|
| Material | Borosilicate glass / 316L stainless steel for headplate and all fittings |
| Working volume ** | 5L |
| Total volume Δ | 6.8L |
** Suggested Max.
Δ Total volumes are approximate and may vary slightly.
| Model | FS-05 | FS-06 | FS-06 + FS-06EPM* | FS-07 |
|---|---|---|---|---|
| Product Name | Winpact Parallel | Winpact One | Winpact One | Winpact Evo |
| Heating System | Duo heating | |||
| Working Volume Range | 500ml – 20L | 500ml – 10L | 500ml – 10L | 500ml – 20L |
| Autoclavable Glass Vessels | Yes | |||
| Interchangeable Vessels | Compatible with all types of vessels, except for 5L solid state which is only for FS-05 and FS-07 controller | |||
| Number Of Vessels Controlled Per Controller | 2 | 1 | 1 | 1 |
| Number Of Vessels Controlled Via Remote Software | Max 32 | Max 16 | Max 16 | Max 16 |
| Touchscreen Controller | 10.4″ | 8″ | 8″ | 10.4″ |
| Number Of Peristaltic Pumps | 8 | 3 | 3 | 4 |
| Gas Mixing Options | Available | No | Available, * | Available |
| Oxygen Enrichment | Available | No | Available, * | Available |
| Mass Flow Controller | Available | No | No | Available |
| Off Gas Analyzer | Available | No | No | Available |
| ORP Probe | Available | No | Available, * | Available |
| Lighting Module | Available | No | Available, * | Available |
| External Pump | 4 max. | 1 max. | 2 max. | 2 max. |
| Solid State | Available | No | No | Available |
* Optional expansion module (FS-06-EPM) needed.
