| ELMI Laboratory Ltd. 來自於拉脫維亞，成立於1989年，主要生產研發實驗室小型儀器，例如：磁力攪拌器、微孔板恆溫振盪器、振盪器、水浴鍋、離心機、烤乳豬旋轉迴轉試管混合器等。 |
| http://www.elmi-tech.com/welcome.html |
| 產品：實驗儀器目錄 Intelli-MixerTM RM-2 離心管旋轉振盪混合器 FugamixTM 震盪離心機 SkySpinTM CM-6MT 擺動式離心機 SkySpinTM CM-50 離心機 SkyLineTM shakers 振盪混合器 Digital thermostatic shaker DTS-2 DTS-4 微孔板恆溫振盪器 Digital thermostat MT-2 微孔盤恆溫器 Wather bath thermostats 水浴槽 Magnetic stirrer 電磁攪拌器 Vortex mixer V-3 振盪器 |
Intelligent Mixers™

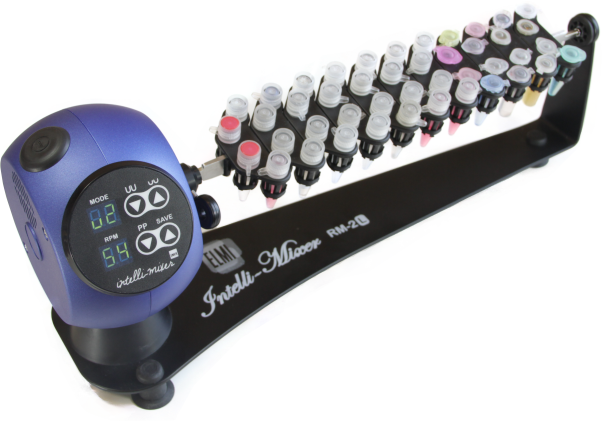

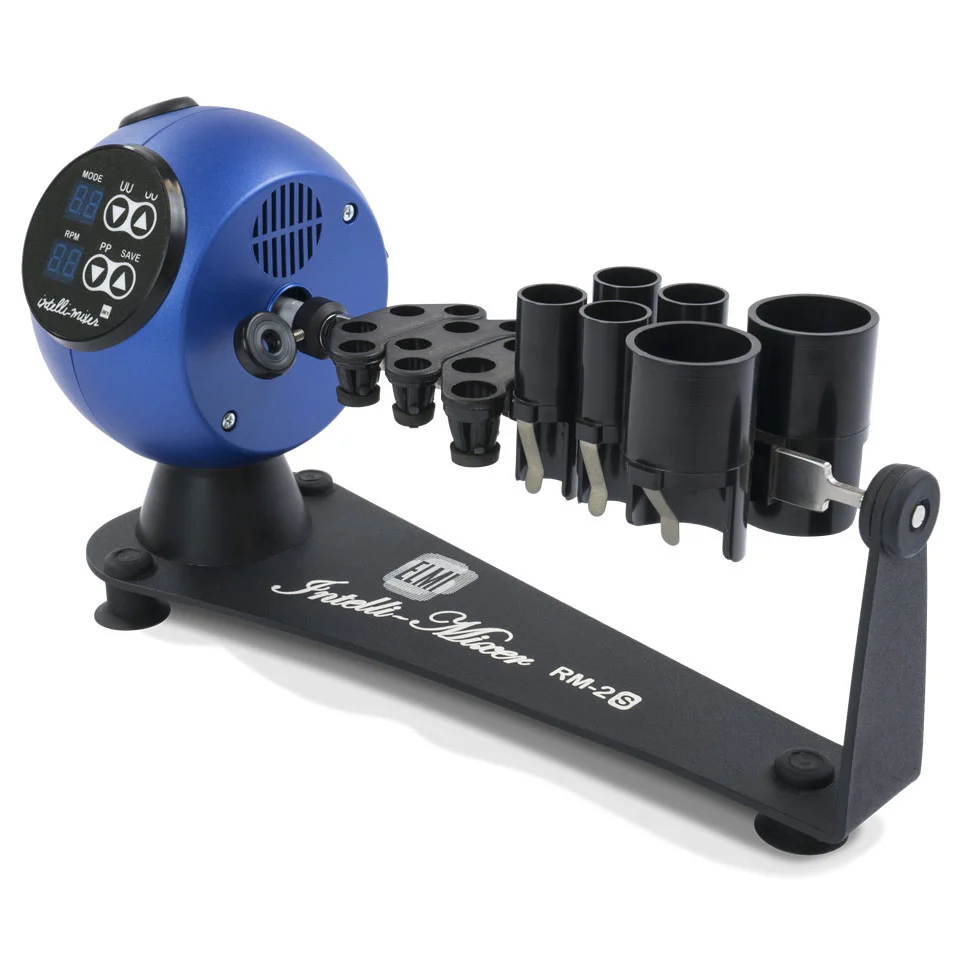

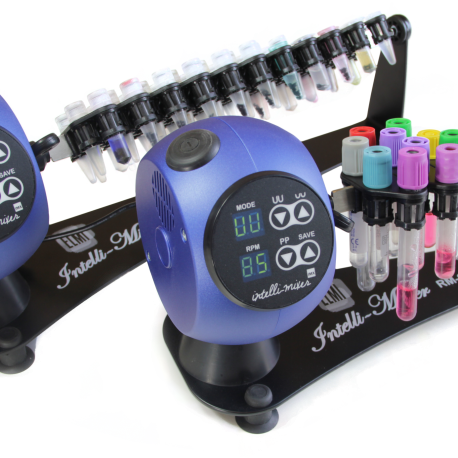

- ELMI RM-2L Intelli-mixer Large – Includes Mix Rack
由 V-Spin 提供動力——世界上最先進的專利混合和液體處理技術——
Intelli-Mixer RM-2 擁有跨時代的先進技術。V-spin 利用卓越的步進馬達，使各種混合、震動和週期性旋轉合而為一。這個多用途儀器既是一個旋轉器、也是漩渦混合器，更是Western Blot 搖擺振盪器。
設計為冷房安全使用，
34 種操作模式，這個多功能產品在當今市場上無可匹敵。
搖擺器、漩渦混合器和Western Blot 搖擺振盪器 34 種自動智能混合(西方轉漬法)
15 種混合模式 這款最先進的 Intelli-Mixer 配備了以卓越效率執行每一類試管混合的能力。

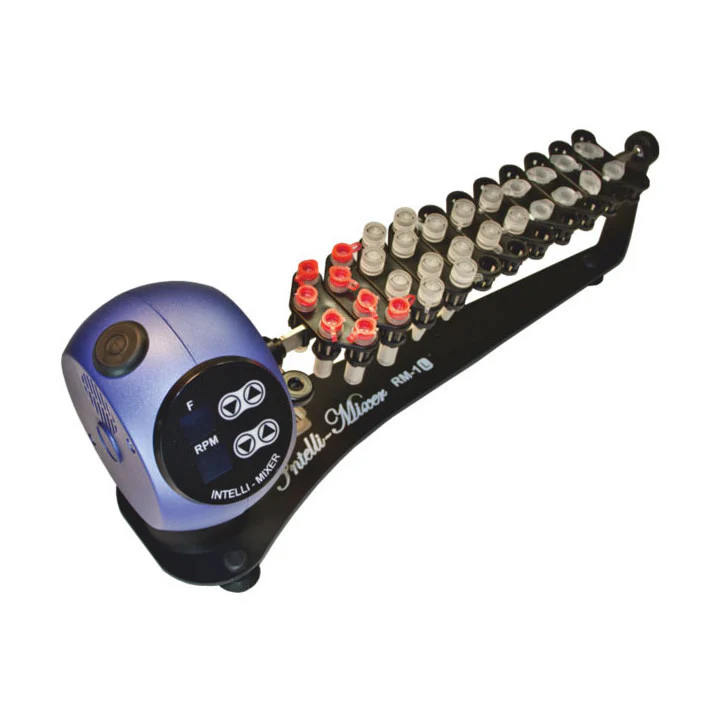

這個多功能單元，標配一個混合試管架，支持 0.5 至 50 毫升的試管。

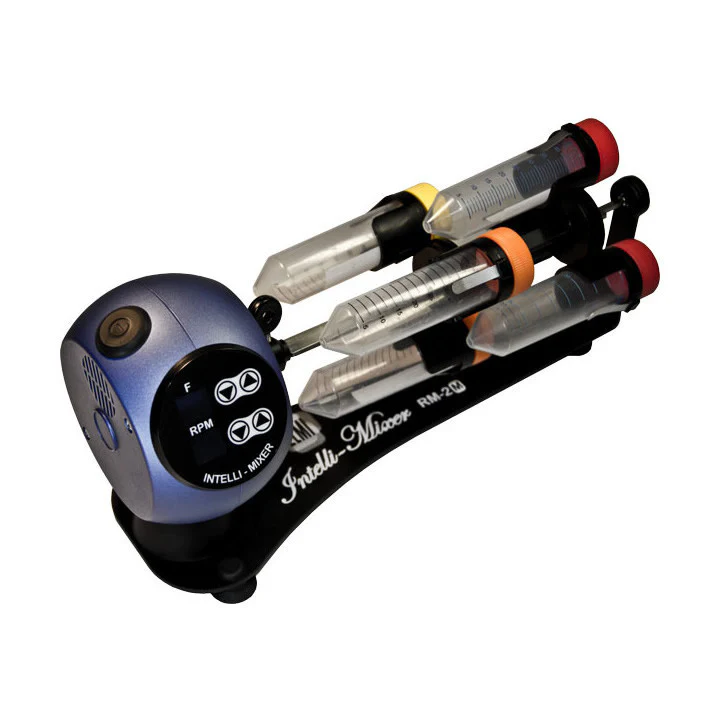

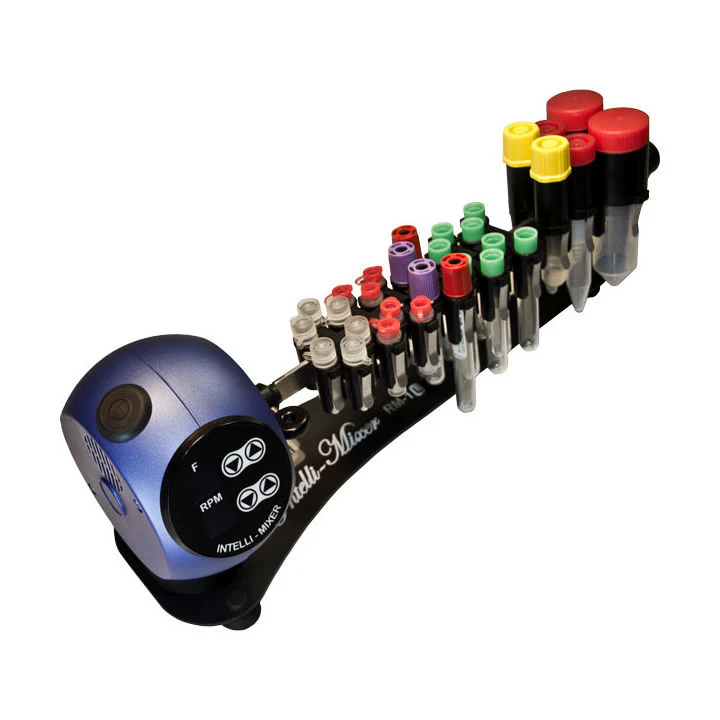

此外，還提供 3 種可選的架長，並有各種配件來滿足您特定的實驗室需求(0.5mL, 1.5mL, 2.0mL, 12x75mm tubes, 康氏管, flow cytometry tubes, 養菌管, 15mL centrifuge tubes, 50mL centrifuge tubes, 各式離心管)。
配備 2 種漩渦Vortex頻率，這款強大的混合器能夠同時漩渦混合最多 42 支 Eppendorf 試管。
12 種搖擺模式 Intelli-Mixer 的強大電動馬達與精心設計的搖擺程序相結合，確保在所有 12 種應用中都具有穩定可靠的高性能。
其速度控制器能自動在 RPM 和每分鐘搖動次數之間切換，以保證精確控制和重現性。

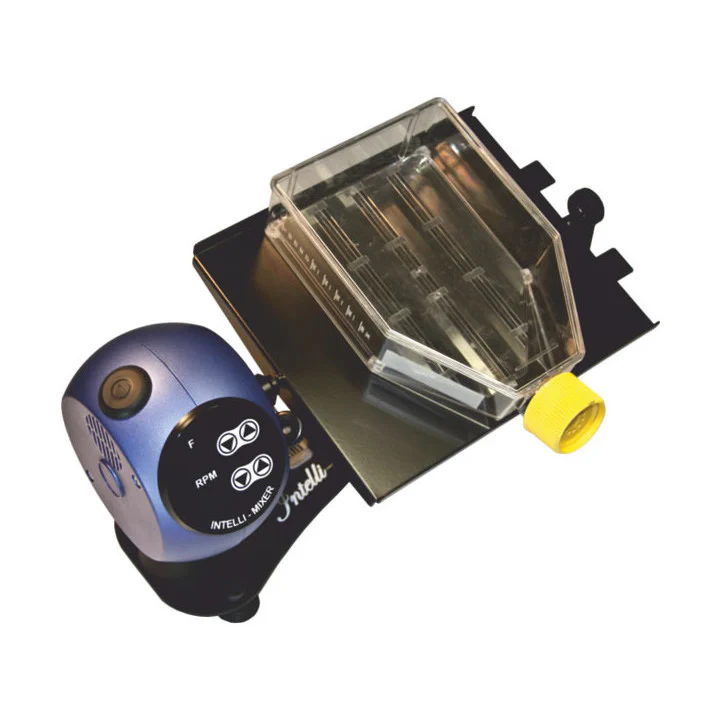

Western Blot: 創新的搖擺平台設計，配有防滑表面，為各種樣品提供了充足的空間，並確保即使在停電的情況下也不會翻倒。
4 種吸附模式 Intelli-Mixer 的超聲波震動吸附模式專門設計用於西方印跡協議。
經過嚴格測試，使用在Western Blot方法上表現出色：
敏感性——顯示出高達 20 倍的敏感性；
速度——快 3 到 5 倍；
特異性——交叉反應的可能性低至 4 倍；
節省——使用試劑的可能性低至 12 倍。
| Rotation Speed | RPM | 1 – 99 |
| Rotation Speed Settings Step | RPM | 1 |
| Overall Number of Programs | – | 28 Standard + 3 Custom |
| Environmental Temperature | ˚C | 10 – 45 |
| Relative Air Humidity (at 20˚C) | % | up to 80 |
| Power Supply Adapter | – | DC 12V, 1.5 A |
離心機

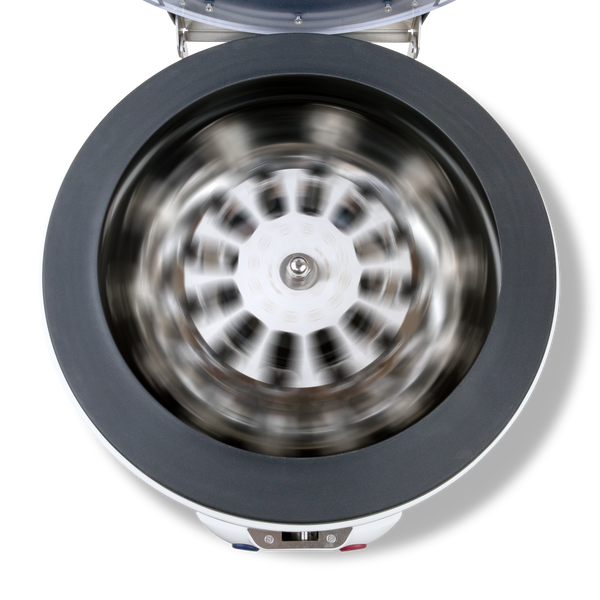

Benchtop Centrifuges
Showing all 7 Products
Benchtop Centrifuges

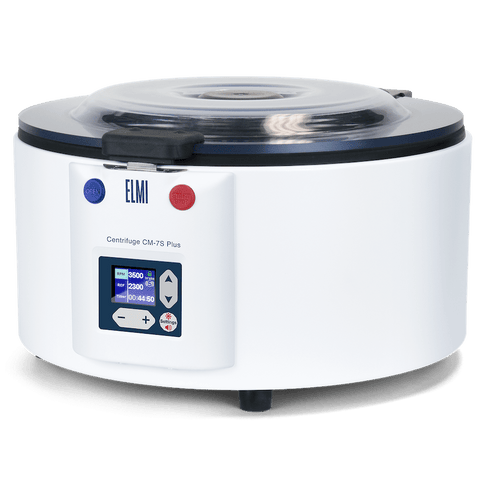

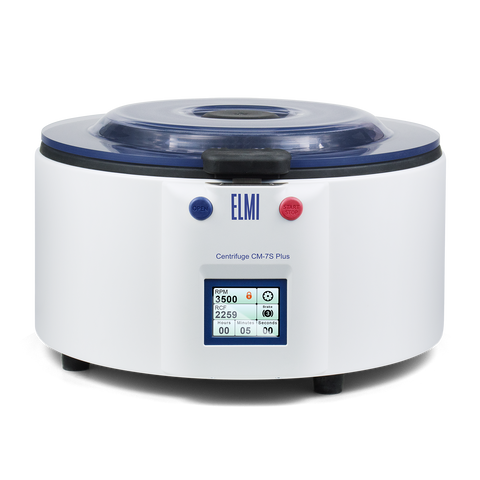

CM-7S Plus Benchtop Centrifuge
| Rotor Rotation Speed | RPM | 100 – 3,500 |
| Timer | min | 1 – 99 |
| Maximum Centrifugal Force | RCF (G-Force) | 2,300 |
| Brake Levels | – | 6 |
| Working Temperature Range | ˚C ˚F | from +10 up to +40 from 50 to 104 |
| Relative Air Moisture at 20˚C (68˚F) | % | 80 |
| Voltage and Frequency | V, Hz | 100 – 240V; 50/60Hz |
| Maximal Consumable Power | W | 250 |
| Size (L x W x H) | mm in | 430 x 410 x 220 16.9 x 16.1 x 8.6 |
| Weight | kg lbs | 12.6 27.8 |
Benchtop Centrifuges

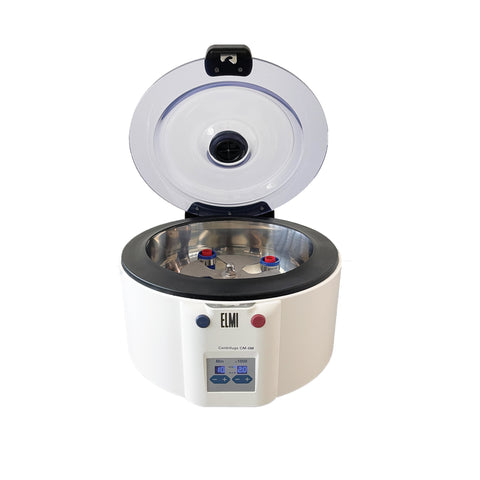

CM-6M Benchtop Centrifuge
| Rotor Rotation Speed | RPM | 100 – 3,500 |
| Timer | min | 1 – 99 |
| Maximum Centrifugal Force | RCF (G-Force) | 2,300 |
| Brake Levels | – | 6 |
| Working Temperature Range | ˚C ˚F | from +10 up to +40 from 50 to 104 |
| Relative Air Moisture at 20˚C (68˚F) | % | 80 |
| Voltage and Frequency | V, Hz | 100 – 240V; 50/60Hz |
| Maximal Consumable Power | W | 250 |
| Size (L x W x H) | mm in | 430 x 410 x 220 16.9 x 16.1 x 8.6 |
| Weight | kg lbs | 12.6 27.8 |
Benchtop Centrifuges

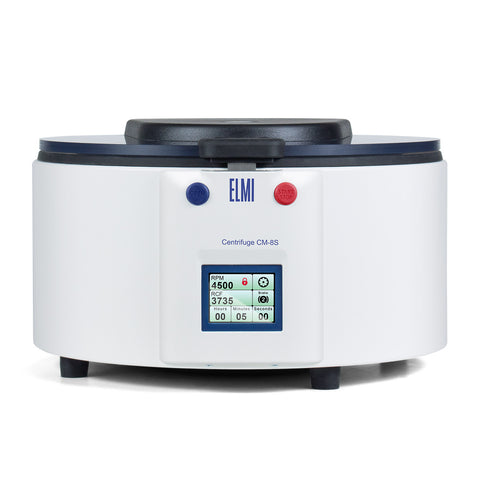

CM-8S Touchscreen Swing-Out Centrifuge
| Rotor Rotation Speed | RPM | Range: 100 – 4,500 RPM |
| Timer | min | Range: 1 second – 12 hours |
| Maximum Centrifugal Force | RCF (G-Force) | 3,735 RCF |
| Brake Levels | – | 10 |
| Working Temperature Range | ˚C | from +10 to +40 ˚C |
| Relative Air Moisture at 20˚C (68˚F) | % | 80 |
| Voltage and Frequency | V, Hz | 100 – 240V; 50/60Hz |
| Maximal Consumable Power | W | 320 |
| Size (L x W x H) | mm | 431 x 410 x 247 mm |
| Weight | kg lbs | 14,5 |
Benchtop Centrifuges

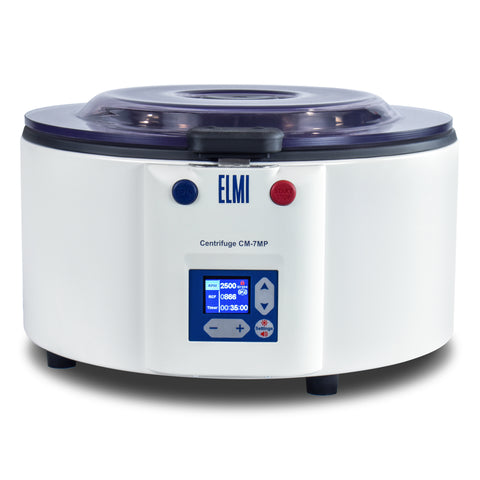

Micro Plate Centrifuge CM-7MP
| Rotor Rotation Speed | 100 – 2,500 RPM |
| Timer | 1 – 99 min |
| Maximum Centrifugal Force | 866 RCF (G-Force) |
| Brake Levels | 6 |
| Working Temperature Range | from +4 to +40 ˚C |
| Level of noise 1 m in distance, db(A) | No more than 61 |
| Relative Air Moisture % | 80% |
| Voltage and Frequency | 100 – 240 V; 50/60 Hz |
| Maximal Consumable Power | 250 W |
| Size (L x W x H) | 430 x 410 x 220 mm |
| Weight | 13.8 kg/30 lbs |
Benchtop Centrifuges

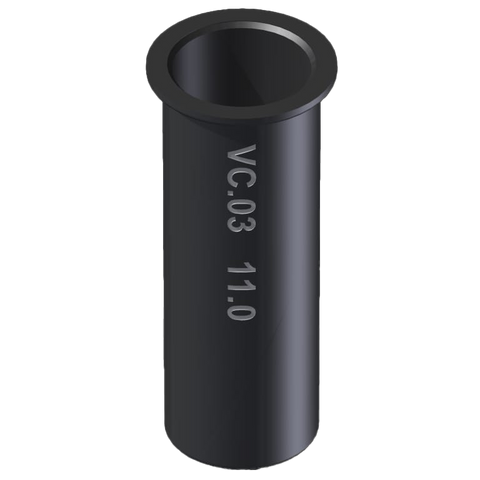

22 mm tube adapter for use with 50ml …
Benchtop Centrifuges
CM-7S Benchtop Centrifuge Touchs…
| Rotor Rotation Speed | RPM | 100 – 3,500 |
| Timer | min | 1 – 99 |
| Maximum Centrifugal Force | RCF (G-Force) | 2,300 |
| Brake Levels | – | 6 |
| Working Temperature Range | ˚C ˚F | from +10 up to +40 from 50 to 104 |
| Relative Air Moisture at 20˚C (68˚F) | % | 80 |
| Voltage and Frequency | V, Hz | 100 – 240V; 50/60Hz |
| Maximal Consumable Power | W | 250 |
| Size (L x W x H) | mm in | 430 x 410 x 220 16.9 x 16.1 x 8.6 |
| Weight | kg lbs | 12.6 27.8 |
Benchtop Centrifuges

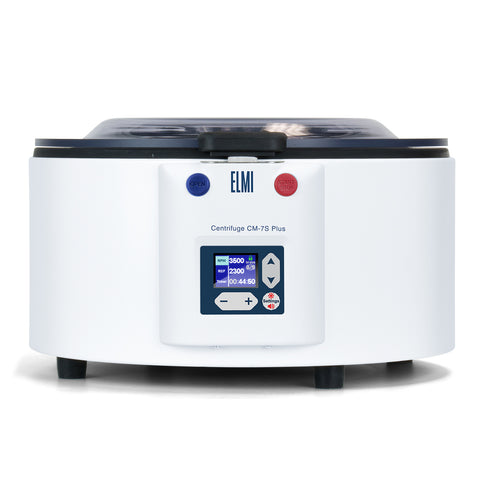

CM-7S Plus Swing-Out Centrifuge
| Rotor Rotation Speed | RPM | 100 – 3,500 |
| Timer | min | 1sec – 12hr |
| Maximum Centrifugal Force | RCF (G-Force) | 2,300 |
| Brake Levels | – | 6 |
| Working Temperature Range | ˚C | from +10 up to +40 |
| Relative Air Moisture at 20˚C (68˚F) | % | 80 |
| Voltage and Frequency | V, Hz | 100 – 240V; 50/60Hz |
| Maximal Consumable Power | W | 250 |
| Size (L x W x H) | mm in | 431 x 410 x 247 17 x 16x 10 |
| Weight | kg lbs | 13.2 29 |
Benchtop Centrifuges Accessories
離心震盪機(獨家 離心+Vortex 二合一)
Fugamix Centrifuge Mixers
Showing all 2 Products
Fugamix Centrifuge Mixers
Fugamix™ CM-70M-09
| Specifications | Model | CM-9M |
| Centrifugation Speed | RPM | 4,000 – 9,000 |
| Maximum Centrifugal Force | RCF | 5,200 |
| Timer | min | 0.1-30 |
| Number of Vortexing Modes | – | 6 |
| Custom Sample Preparation Modes | – | 1 |
| Dimensions (L x W x H) | mm | 190 x 170 x 125 |
| Power Supply Adapter | – | 24 VDC, 5A |
| Weight | Kg | 1.5 |
Fugamix Centrifuge Mixers

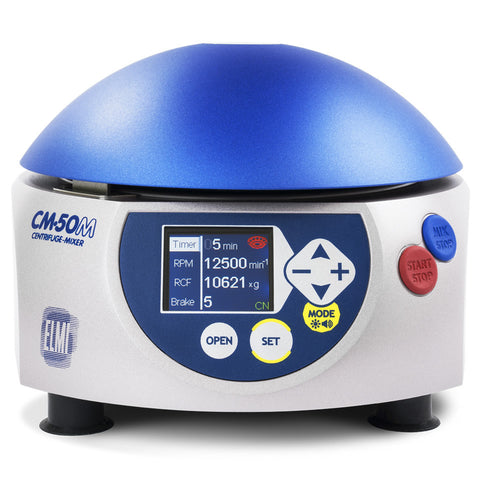

Fugamix™ CM-50M
| Centrifugation Speed | RPM | 1,000-15,000 |
| Maximum Centrifugal Force | RCF | 15,294 |
| Timer | min | from 0.1 up to 99 |
| Number of Vortexing Modes | – | 12 |
| Custom Sample Preparation Modes | – | 1 |
| Dimensions (L x W x H) | mm | 200 x 180 x 145 |
| Power Supply Adapter | – | 24 VDC, 5A |
| Weight | kg | 3.1 |
微量離心機
Microcentrifuges
Showing all 2 Products
ELMI，創新實驗室設備的領導者，欣然宣布推出我們的最新產品－CM-50 Pro。這款新產品充分展現了我們才華橫溢的設計師和工程師的創造力和專業技能，他們在保留上一代型號超緊湊外形的同時，顯著提升了設備的功能。 CM-50 Pro 離心機憑藉其卓越的功能組合，樹立了行業新標竿：
- 11 個多功能程式：除了主程式外，CM-50 Pro 還提供 11 個不同的程序，為使用者提供前所未有的靈活性，適用於廣泛的應用。
- 直覺的觸控螢幕顯示器：離心機配備使用者友好的觸控螢幕介面，使選擇和自訂設定變得比以往更加容易。
- 快速轉子加速：CM-50 Pro 先進的馬達技術可確保轉子快速且有效率地加速，從而節省實驗室的寶貴時間。
- 無需外部電源適配器：CM-50 Pro 設計時考慮到了便利性，無需外部電源適配器即可運行，從而簡化了設定並減少了混亂。
- 自動電壓調節：離心機可自動調整任何插入電壓，無論在哪個地區都能實現無縫運作。
- 超緊湊尺寸：秉承 ELMI 節省空間的設計傳統，CM-50 Pro 擁有同類產品中最小的佔地面積，在實驗台上佔用的空間極小。
- 令人印象深刻的速度：CM-50 Pro 的速度可達 15,000 RPM，可提供高效能結果，使其成為要求嚴格的應用的理想選擇。
CM-50 Pro 離心機與市面上其他產品截然不同，它將尖端技術與當今實驗室所需的實用性和效率完美結合。無論您從事科學研究、臨床診斷或工業應用，CM-50 Pro 的設計都能超越您的預期。
Microcentrifuges

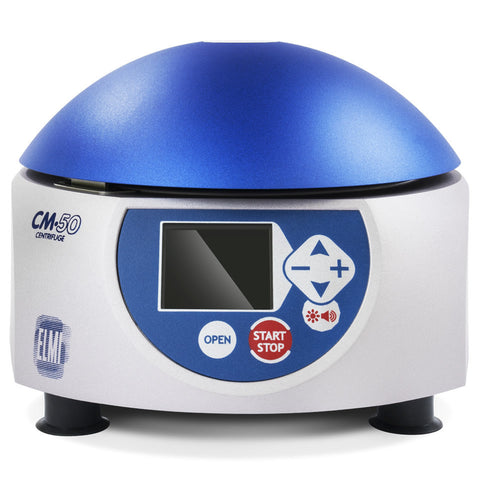

CM-50 Micro Centrifuge, Hermetic…
| Centrifugation Speed | RPM | 1,000-15,000 |
| Maximum Centrifugal Force | RCF | 15,295 |
| Timer | min | from 0.1 up to 99 |
| Dimensions (L x W x H) | mm | 200 x 180 x 145 |
| Power Supply Adapter | – | 24 VDC, 5A |
| Weight | kg | 3.1 |
Microcentrifuges

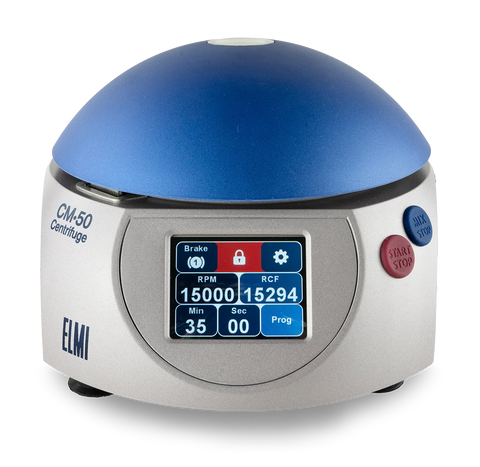

centrifuge CM-50 Pro
| Centrifugation Speed | RPM | 1000 – 15000 |
| Timer | min | 1 second – 99 minutes 59 seconds H |
| Maximal relative centrifugal force, RCF (G) | RCF (G-Force) | 15,294 |
| Custom user programs | – | 11 |
| Rotor speed step (RPM) | RPM | 1 |
| Mains voltage, V | V, Hz | 110-240 |
| Size of the device (length x width x height), mm | mm in | 206x188x140 |
| Approximate weight, kg (without rotor and cord)* | kg | 2.4 |
電磁攪拌器
Magentic Stirrer
Showing all 1 Products
Magentic Stirrer

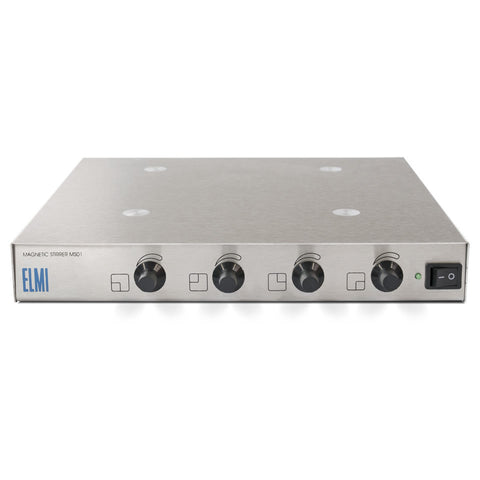

MS-01 4 Place Magnetic Stirrer
| Speed Range | RPM | 1 – 2200 |
| Liquid Volume Range for One Mixing Place | L | from 2.0 up to 2L |
| Power Adapter Output | – | 50 |
| Dimensions (L x W x H) | mm | 260 x 260 x 40 |
| Weight | kg | 2.1 |
老鼠發情週期偵測器
Mouse Estrus Detector
Showing all 1 Products
Mouse Estrus Detector

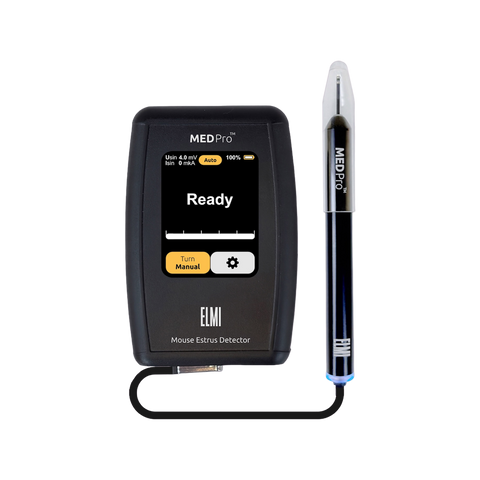

Mouse Estrus Detector MEDPro™
ELMI的老鼠發情檢測器使用一種簡單而巧妙的方法來告訴何時雌性老鼠準備繁殖（稱為發情期）。為什麼需要這個裝置：雌性老鼠在其生殖週期中經歷不同的階段，知道她們何時處於發情期對於繁殖、實驗以及最小化研究所需的動物數量都是重要的。目前的方法，如在顯微鏡下檢查陰道細胞，對老鼠來說既緩慢又有壓力。這個裝置的工作原理：微型探頭：這個裝置有一個小而光滑的探頭，輕輕插入老鼠的陰道。電阻測量：探頭發送一個微弱的電信號，這個信號太弱以致於不會對老鼠造成傷害，但足夠強大以測量陰道內組織的電阻。電阻的變化取決於老鼠在生殖週期中的哪一個階段。發情檢測：在發情期間，該組織的電阻相較其他階段較高。當裝置測得的電阻高於某個閾值（約6 kΩ）時，會告訴研究人員老鼠處於發情期。為什麼這個裝置更好：快速無痛：過程僅需一秒鐘，不會對老鼠造成疼痛，也不會產生壓力。準確：這個裝置比舊有的方法更可靠更快速，如目視檢查或血液和尿液的實驗室測試。實際好處：它允許科學家更好地把握繁殖或實驗的時機，這有助於減少所需的動物數量。此外，它符合3R原則：替代、減少和改善在研究中使用動物的方式。總之，MEDPro™是一種快速、準確且友善動物的工具，利用電信號檢測老鼠何時準備繁殖，從而改善研究實踐和動物福利。
Technical Data
Measurement Range, kΩ
0–50
Accuracy, kΩ
0.1
Operating frequency, kHz (sinusoidal)
1
Mode
Auto, Manual
AV (sinusoidal) through probe electrodes (Auto and Manual mode), mV
0.4–4.0
Maximum AC through probe electrodes (Auto mode), µA
<1
Maximum DC through probe electrodes (Auto and Manual mode), µA
<1
Probe, mm
L20xO.D.1.82
Dimensions (without cable), mm
L138xO.D.12.5
Weight (without cable), g
30
Color graphic 2.4” Touch Display, Dimensions, mm
117 × 79 × 33
Weight (including batteries), g
220
Battery, 1.5V, AA, element
3
Battery Life (when used continuously), hour
>12
Cable AUX Jack 3.5mm Male to Male Audio for Headphones, m
1
The Mouse Estrus Detector (MedPro™)
Uses a simple yet clever method to tell when a female mouse is ready to reproduce (a phase called estrus).
Why the device is needed:
- Female mice go through different phases in their reproductive cycle, and knowing when they are in the estrus phase is important for breeding, experiments, and minimising the number of animals needed for research.
- Current methods, like checking vaginal cells under a microscope, are slow and stressful for the mice.
How the device works:
- Tiny Probe: The device has a small, smooth probe that is gently inserted into the mouse’s vagina.
- Electric Resistance Measurement: The probe sends a tiny electric signal that’s too weak to harm the mouse but strong enough to measure the resistance of the tissue inside the vagina. The resistance changes depending on what stage of the reproductive cycle the mouse is in.
- Estrus Detection: During estrus, the tissue has higher resistance compared to other phases. When the device measures resistance higher than a certain threshold (about 6 kΩ), it tells the researchers that the mouse is in estrus.
Why it’s better:
- Quick & Painless: The process takes only a second, doesn’t hurt the mouse, and doesn’t cause stress.
- Accurate: The device is more reliable and faster than older methods like visual checks or lab tests of blood and urine.
Practical Benefits:
- It allows scientists to better time breeding or experiments, which helps reduce the number of animals needed. Plus, it aligns with the 3Rs principle: Replacement, Reduction, and Refinement of animal use in research.
In summary, the MedPro™ is a fast, accurate, and animal-friendly tool that uses electrical signals to detect when a mouse is ready to breed, improving research practices and animal welfare.
Articles and publications:
- International Journal for Molecular Science
Advancing 3Rs: The Mouse Estrus Detector (MED) as a Low-Stress, Painless, and Efficient Tool for Estrus Determination in Mice - Laboratory Animals for Science
Instrumental Method For Determining The Estrous Cycle Stages In Small Laboratory Rodents
